Caméra Thermique Série SP
La série SP pour la ultra haute performance les longues distances jusqu'à 2200°C
1280×1024
NETD <20 mK
Plage jusqu’à 2200°C
Double affichage
Objectifs interchangeables
Solution complète pour la recherche, la métallurgie, ou les environnements extrêmes
Tarif €HT (Nous contacter)
640×480
NETD <30 mK
Autofocus
Ecran 5” Full HD inclinable
Viseur OLED
HDMI
GPS
Tarif €HT (Nous contacter)
SuperIR
Owered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.
One-second fast focusing
Support for 5 focus modes (Laser-Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) with a fast focus speed of 1 second to match your workflow, optimize image clarity, and ensure measurement accuracy.

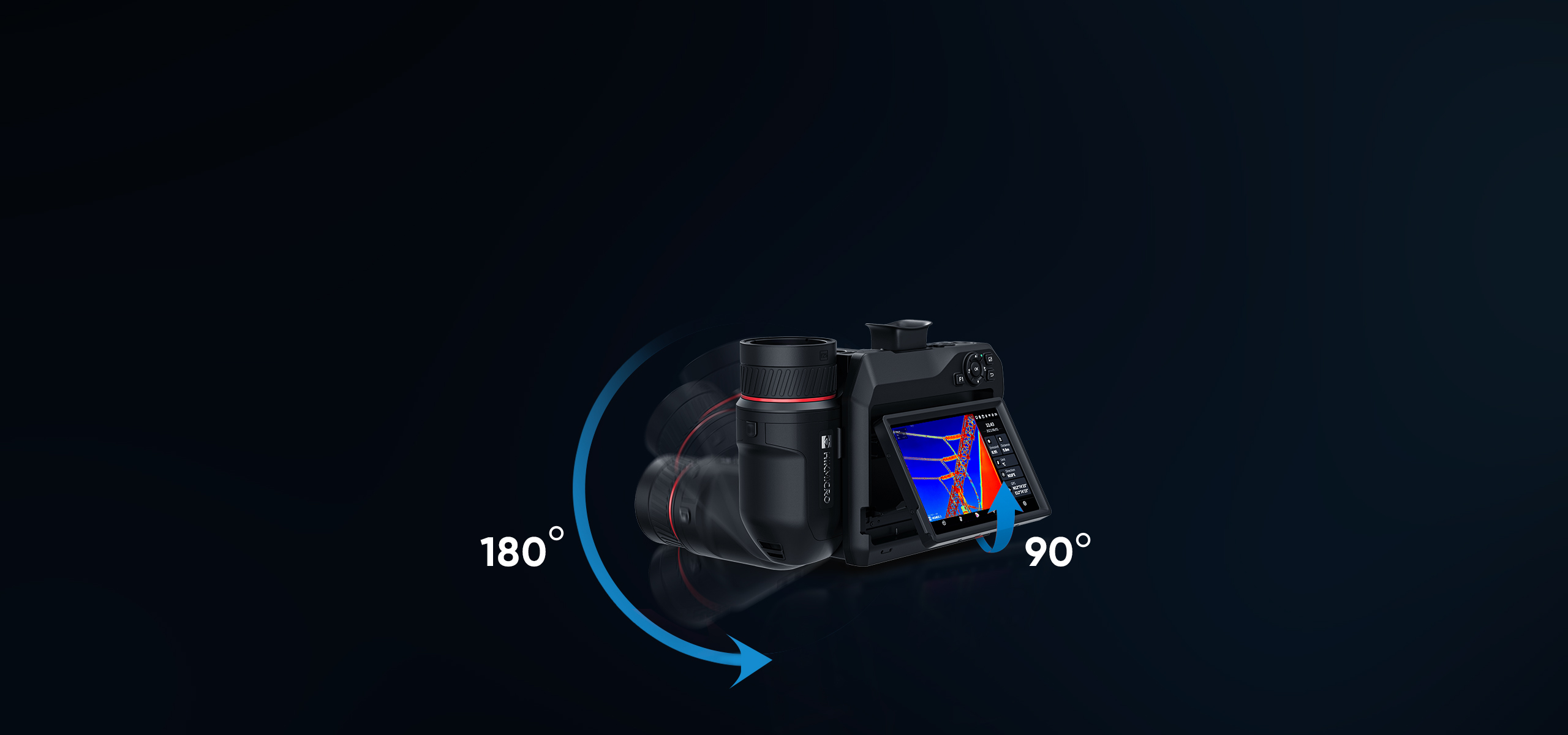

Flexible Rotating Lens and Screen
The 90° rotating screen and the 180° rotating lens design help to easily view the area around, between, above, or below the target. Keeping a safe distance allows for equally flexible inspections.
Designed for Outdoor
Water and dust resistant to IP54 standards and drop tested to a height of 1 m.

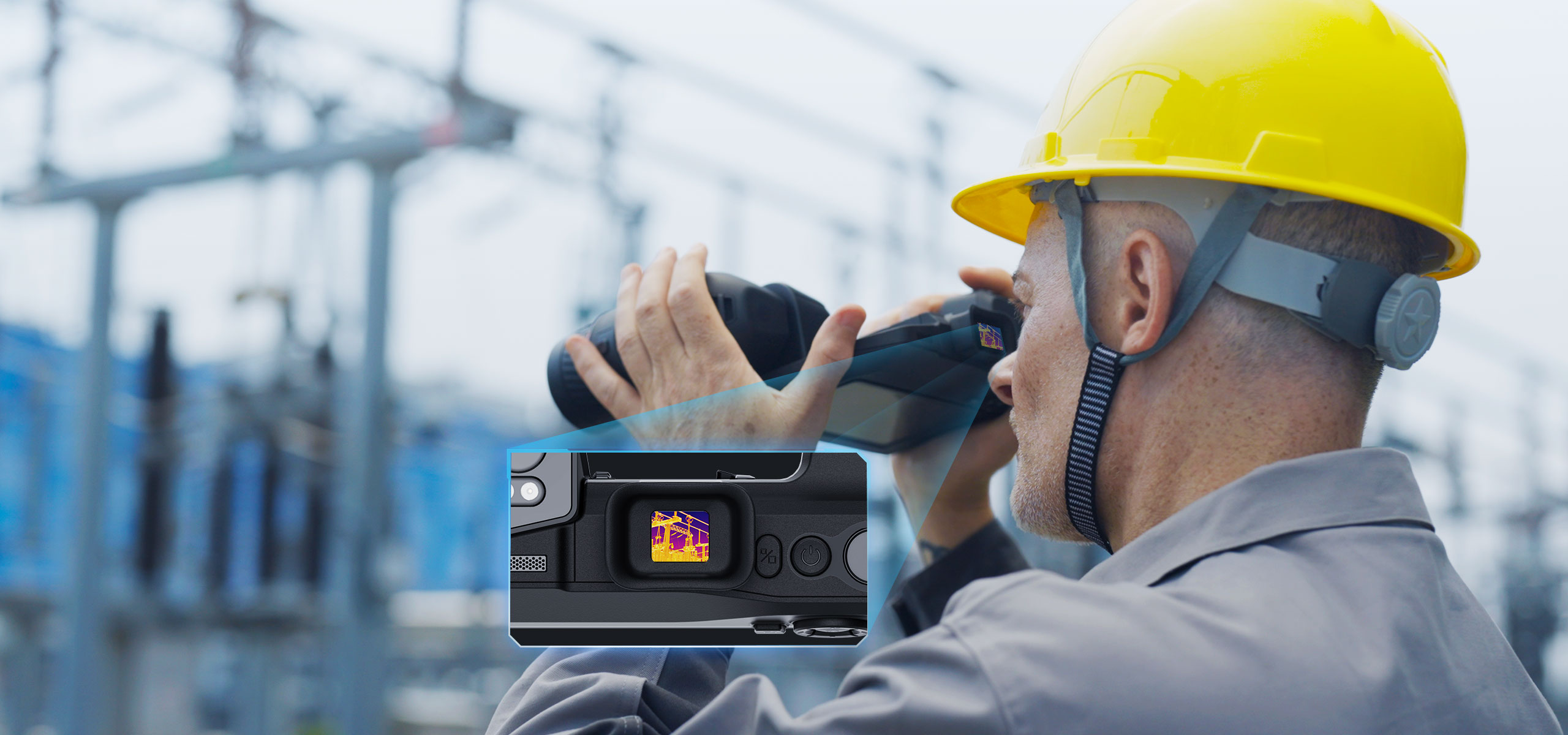

1024 x 768 OLED electronic viewfinder and auto-brightness 1920 × 1080 resolution 5.1-inch OLED touchscreen.
Enables easy outdoor inspections in bright, challenging light and harsh conditions. (*SP120H only)
1024 x 768 OLED electronic viewfinder and auto-brightness 1920 × 1080 resolution 5.1-inch OLED touchscreen.
Enables easy outdoor inspections in bright, challenging light and harsh conditions. (*SP120H only)
Tap Level & Span
Supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems.
Up to 2200°C Temperature Range
With a measurement range of up to 2200°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*SP40H/SP60H/SP120H Only)
High-Precision Detection
By integrating <20m NETD, 12 μm detector pitch, and 0.34 mrad IFOV, our High-Definition Thermal Detail technology delivers exceptional sensitivity and clarity, revealing more intricate thermal details. (*SP120H Only)
Interchangeable Battery System
Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 8 hours of operation.
You can stay powered up for even the longest inspections.
You can stay powered up for even the longest inspections.
Extensive Range of Interchangeable Lenses
Interchangeable lenses allow you to pick the field of view for your inspections. Different lenses have different fields of view, giving you more options for different scenarios to see and capture more detailed images and to measure small problems more accurately.
Embedded Laser Distance Meter
An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.
Image Modes
Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.
Complete Image Annotations
Quickly annotate your images with voice, text or QR codes. Add GPS and compass direction to outdoor images to include geolocation data.
Continuous Digital Zoom
1.0x to 12.0x continuous digital zoom provides more image details.
Precise, Flexible, Stable Microscope Stand
Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis. (*SP40/SP40H/SP60/SP60H Only)
HIKMICRO Analyzer
HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.
